XP6NA4R0MT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA4R0MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Lower On-resistance ▼.
XP6NA4R0 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

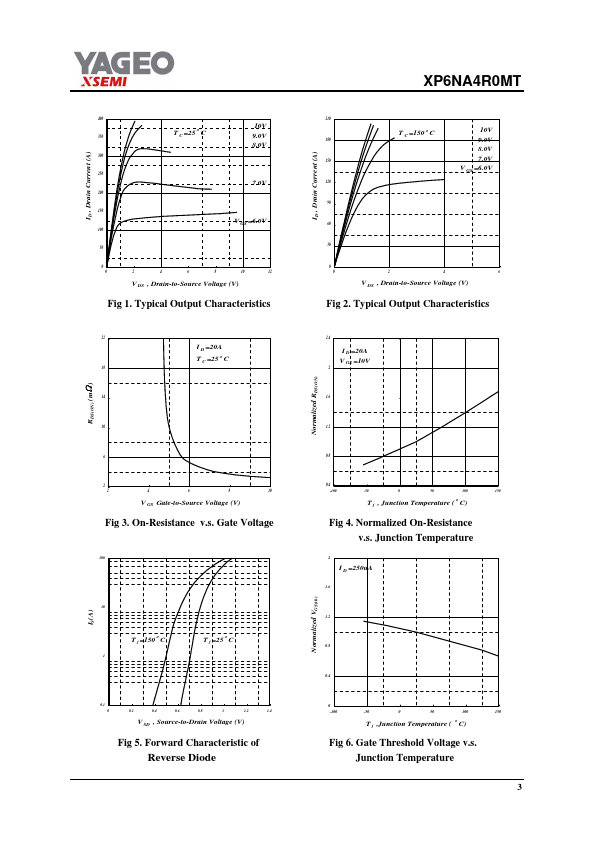

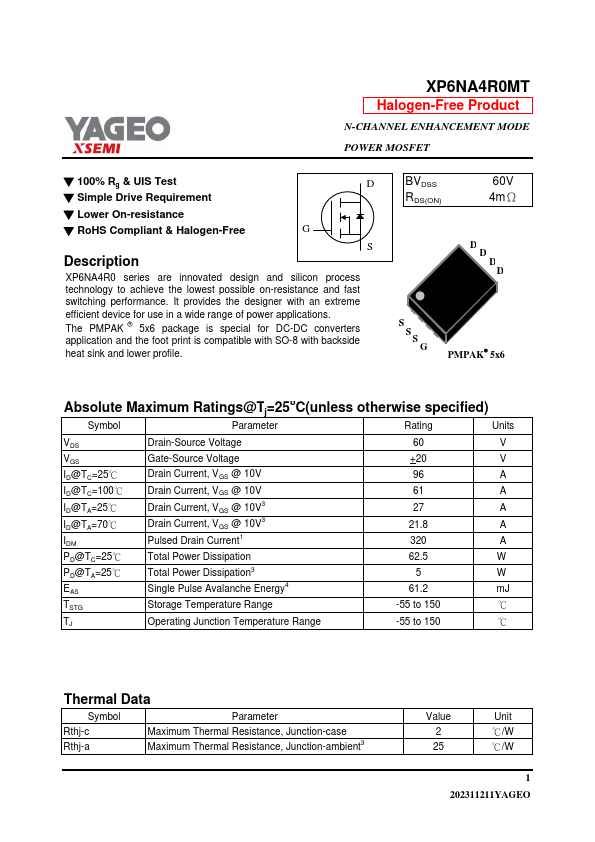

XP6NA4R0MT Datasheet Preview — Preview of XP6NA4R0MT PDF

Datasheet Specifications

Part number: XP6NA4R0MT
Manufacturer: YAGEO
File Size: 324.74 KB
Datasheet: XP6NA4R0MT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 60V 4mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating U
