XP8N3R5CMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP8N3R5CMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ SO-8 Compatible with Heatsink ▼ Ultra Low On-resi.
XP8N3R5C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

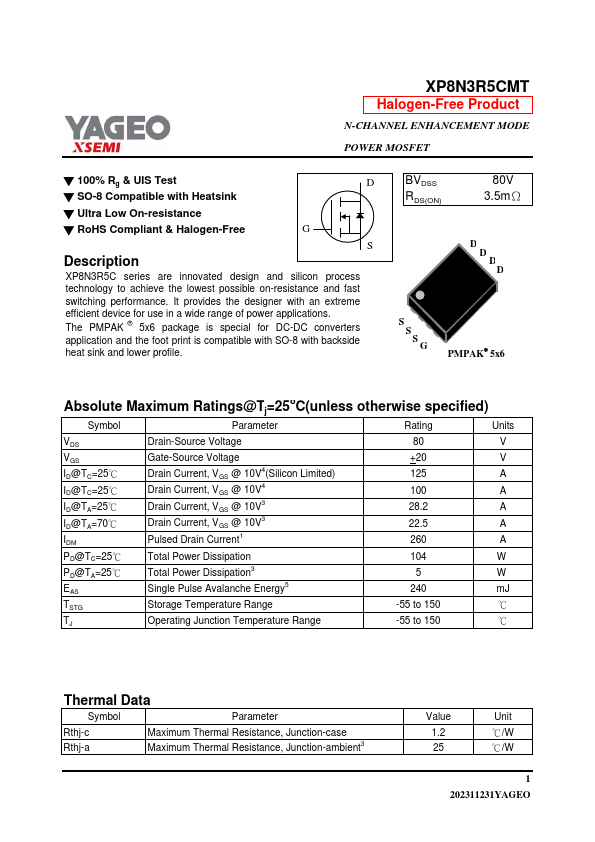

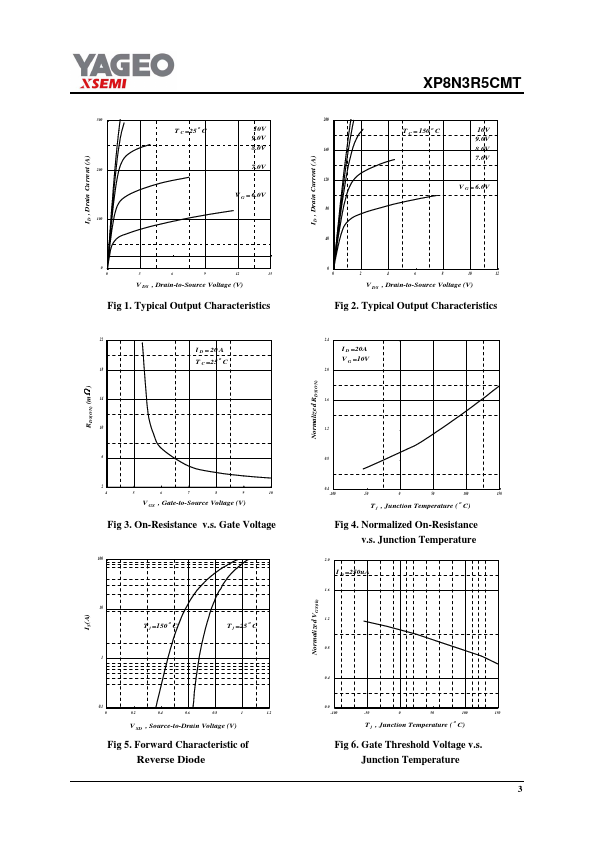

XP8N3R5CMT Datasheet Preview — Preview of XP8N3R5CMT PDF

Datasheet Specifications

Part number: XP8N3R5CMT
Manufacturer: YAGEO
File Size: 325.07 KB
Datasheet: XP8N3R5CMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 80V 3.5mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
