XP8N4R2MT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP8N4R2MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ SO-8 Compatible with Heatsink ▼ Ultra Low On.
XP8N4R2 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

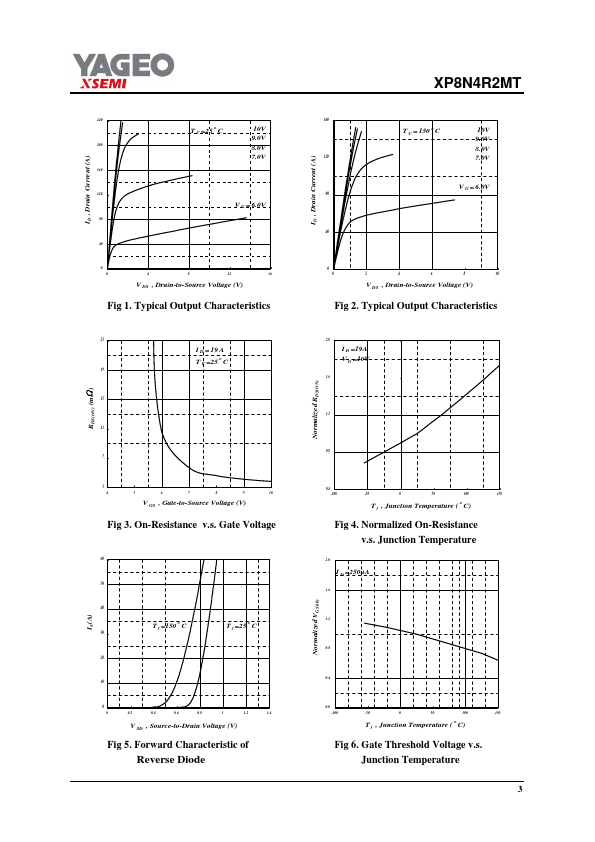

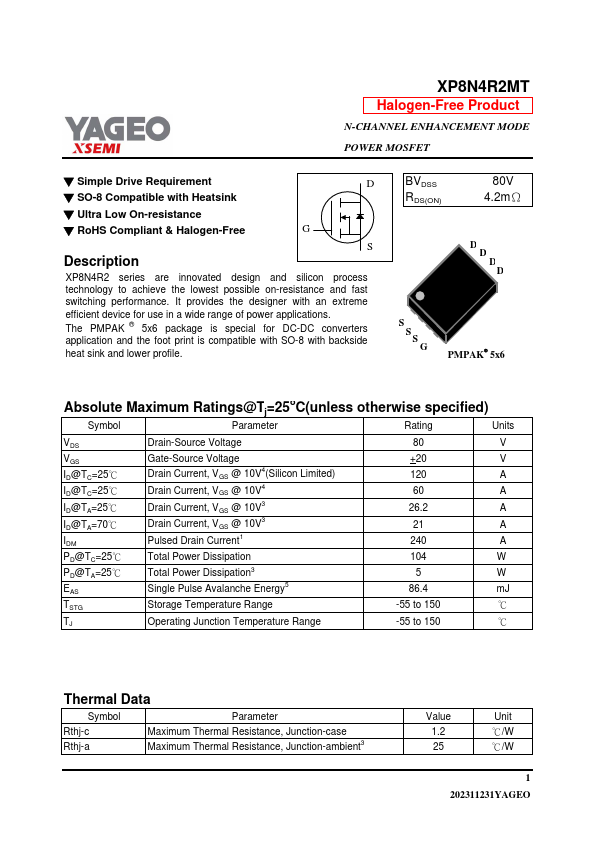

XP8N4R2MT Datasheet Preview — Preview of XP8N4R2MT PDF

Datasheet Specifications

Part number: XP8N4R2MT
Manufacturer: YAGEO
File Size: 323.71 KB
Datasheet: XP8N4R2MT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 80V 4.2mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
