YSS901 Datasheet (YAMAHA CORPORATION)

YSS901, SD Stereo dipole

No.

Pin name 5 6 7 8 9 10 11 12 13 www.DataSheet4U.com 14 15 21 22 23 24 25 26 27 28 29 30 31 37 38 39 40 41 42 43 44 45 46 47 53 54 55 56 57 58 59 60 61 62 63 DVDD CTLSEL SYNCN BCLK CSN DOUT DIN DSEL2 DSEL1 DSEL0 DVDD TST2 DVSS AVSS AIRRET AIROUT AIR AILRET AILOUT AIL VREF AVDD LOUT ROUT PLLC AVSS

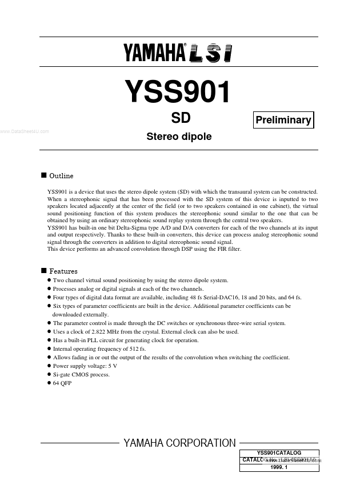

YSS901 SD www.DataSheet4U.com Preliminary Stereo dipole g Outline YSS901 is a device that uses the stereo dipole system (SD) with which the transaural system can be constructed.

When a stereophonic signal that has been processed with the SD system of this device is inputted to two speakers located adjacently at the center of the field (or to two speakers contained in one cabinet), the virtual sound positioning function of this system produces the stereophonic sound similar to the one that can

YSS901 Features

* n Two channel virtual sound positioning by using the stereo dipole system. n Processes analog or digital signals at each of the two channels. n Four types of digital data format are available, including 48 fs Serial-DAC16, 18 and 20 bits, and 64 fs. n Six types of parameter coefficients are built in
