YSS922 - 96kHz DIR + Dolby Digital / Pro Logic / DTS decoder + Sub DSP

Product Overview

YAMAHA

Part number	YSS922
Manufacturer	YAMAHA
File Size	309.36 KB
Description	96kHz DIR + Dolby Digital / Pro Logic / DTS decoder + Sub DSP
Datasheet	YSS922 Datasheet

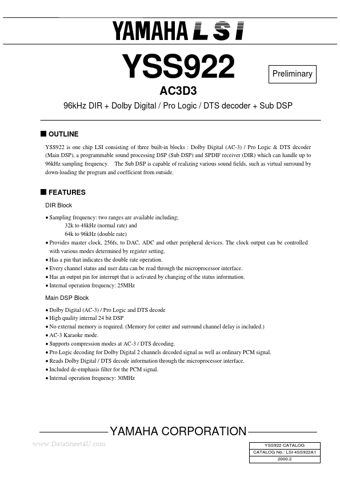

Additional preview pages of the YSS922 datasheet.

DIR Block.
Sampling frequency: two ranges are available including; 32k to 48kHz (normal rate) and 64k to 96kHz (double rate).
Provides master clock, 256fs, to DAC, ADC and other peripheral devices. The clock output can be controlled with various modes determined by register setting.
Has a pin that indicates the double rate operation.
Every channel status and user data can be read through the microprocessor interface.
Has an output pin for interrupt that is activated b.
