YSS952 Datasheet (YAMAHA) - Audio Processing Device APPLICATION MANUAL

YSS952, Audio Processing Device APPLICATION MANUAL

11 2.3 Pin Circuit Description 13 2.4 Pin States 16 2.4.1 Power-Off Mode 16 2.4.2 Hardware Reset Mode 16 2.4.3 Normal Operation Mode 16 2.5 System Configuration Examples 17 2.6 Firmware 19 3 FUNCTION DESCRIPTION22 3.1 Register Descriptions 22 3.1.1 Register Map 22 3.1.2 On-Chip RAM Address Map

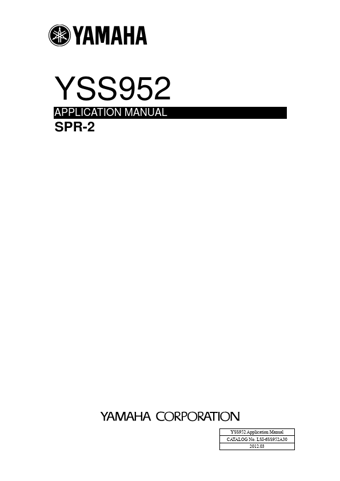

YSS952 APPLICATION MANUAL SPR-2 YSS952 Application Manual CATALOG No.

LSI-6SS952A30 2012.03 YDA952 6SS952A30 2 PRECAUTIONS AND INSTRUCTIONS FOR SAFETY YSS952 WARNING Prohibited Prohibited Prohibited Instructions Do not use the device under stresses beyond those listed in Absolute Maximum Ratings.

Such stresses may become causes of breakdown, damages, or deterioration, causing explosion or ignition, and this may lead to fire or personal injury.

Do not mount the device reversely or imprope
