YMF744B - high performance audio controller

Product Overview

YAMAHA

📥 Download Datasheet

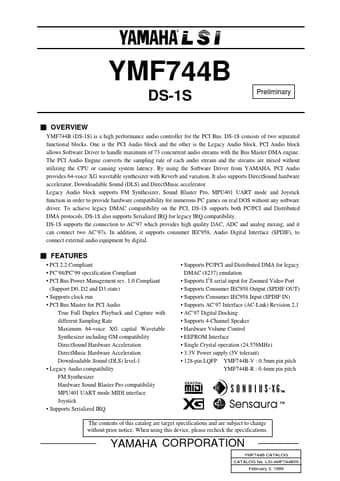

YMF744B high performance audio controller by YAMAHA - Datasheet Preview — Datasheet preview – YMF744B

Datasheet Details

Part number	YMF744B
Manufacturer	YAMAHA
File Size	303.87 KB
Description	high performance audio controller
Datasheet	YMF744B Datasheet
Additional preview pages of the YMF744B datasheet.

Product details

Features

PCI 2.2 Compliant.
PC’98/PC’99 specification Compliant.
PCI Bus Power Management rev. 1.0 Compliant (Support D0, D2 and D3 state).
Supports clock run.
PCI Bus Master for PCI Audio True Full Duplex Playback and Capture with different Sampling Rate Maximum 64-voice XG capital Wavetable Synthesizer including GM compatibility DirectSound Hardware Acceleration DirectMusic Hardware Acceleration Downloadable Sound (DLS) level-1.
Legacy Audio compat.
