YMF262 - FM Operator

Product Overview

Yamaha

📥 Download Datasheet

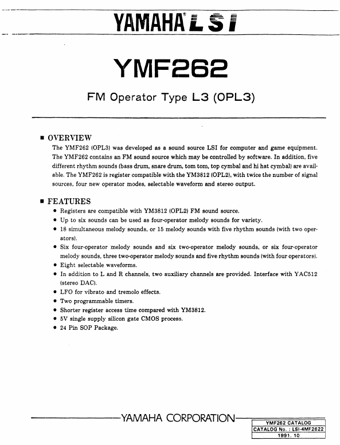

YMF262 FM Operator by Yamaha - Datasheet Preview — Datasheet preview – YMF262

Datasheet Details

Part number	YMF262
Manufacturer	Yamaha
File Size	709.45 KB
Description	FM Operator
Datasheet	YMF262 Datasheet
Additional preview pages of the YMF262 datasheet.

Product details

Features

Registers are compatible with YM3812 (0PL2) FM sound source.
Up to six sounds can b1a used as four-operator melody sounds for variety.
18 simultaneous melody sounds, or 15 melody sounds with five rhythm sounds (with two oper.
a tors).
Six four-operator melody sounds and six two-operator melody sounds, or six four-operator melody sounds, three two-operator melody S()unds and five rhythm sounds (with four operators).
Eight selectable waveforms.
