YMF754 Datasheet - YAMAHA

YMF754 high performance audio controller

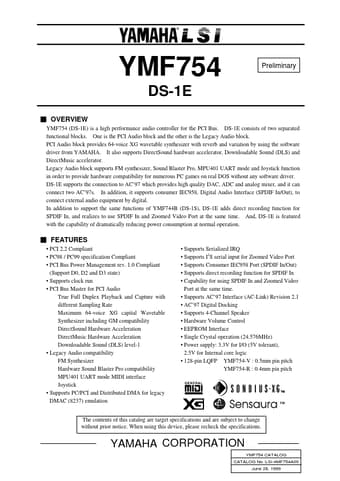

YMF754 DS-1E Preliminary OVERVIEW YMF754 (DS-1E) is a high performance audio controller for the PCI Bus. DS-1E consists of two separated functional blocks. One is the PCI Audio block and the other is the Legacy Audio block. PCI Audio block provides 64-voice XG wavetable synthesizer with reverb and variation by using the software driver from YAMAHA. It also supports DirectSound hardware accelerator, Downloadable Sound (DLS) and DirectMusic accelerator. Legacy Audio block supports FM synthesizer.

YMF754 Features

* PCI 2.2 Compliant

* PC98 / PC99 specification Compliant

* PCI Bus Power Management rev. 1.0 Compliant (Support D0, D2 and D3 state)

* Supports clock run

* PCI Bus Master for PCI Audio True Full Duplex Playback and Capture with different Sampling Rate Maximum

YMF754 Datasheet (306.06 KB)
