20F001 Datasheet - YCL

20F001 10 Base T Low Pass Filter

YCL 10 Base T Low Pass Filter Specifications Parameter Insertion loss Return loss(TX &RX) Cut off frequency Cross talk CMRR Attenuation(TX &RX) Schematic : Designed to meet IEEE 802.3 Requirement. Isolation : 1500Vrms High attenuation from 7th & 5th order filter used for TX&RX signal respectively. Model No: 20F001/20F001N Condition Min Typ Max Unit @1-10MHz -1.0 dB @5-10MHz -15.0 dB @17MHz±2MHz -3.0 dB @1-10MHz -35.0 dB @1-100MHz -30.0 dB @30MHz .

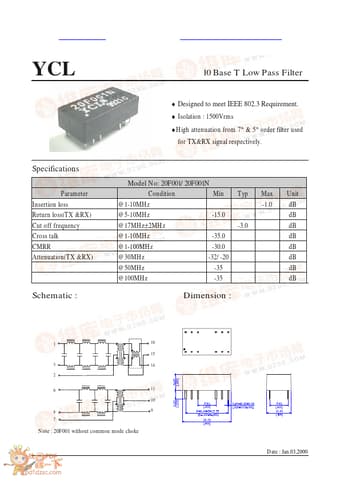

20F001 Datasheet (157.22 KB)

20F001 Datasheet Preview — Preview of 20F001 PDF

Datasheet Details

Part number:

20F001

Manufacturer:

YCL

File Size:

157.22 KB

Description:

10 base t low pass filter.
