20F020 Datasheet - Jingdao

20F020 Ultra-fast diode

R www.jdsemi.cn ShenZhen Jingdao Electronic Co.,Ltd. 20F020 1． PC 、UPS 、 DC-DC 2． l l l l 3． TO-220( RoHS ) 4． 1. (A1) 2 . (K) 3. (A2) 4.1 ，Tamb= 25℃ VRRM 200 V IF(AV) 10×2 A IF(RMS) 22×2 A IFSM 100 A Ptot 50 W Tj 150 ℃ 4.2 ，Tamb= 25℃ Tstg -55～150 ℃ VRRM IR=0.5mA 200 V IRM VR=200V,Tj=25℃ VR=200V,Tj=100℃ 10 μA 200 μA IF=10A,Tj=25℃ VF IF=10A,Tj=100℃ 0.91 1.1 V 0.81 IF=1A,dIF/dt=-200A/μs Trr Tj=25℃ IF=1A,.

20F020 Datasheet (189.88 KB)

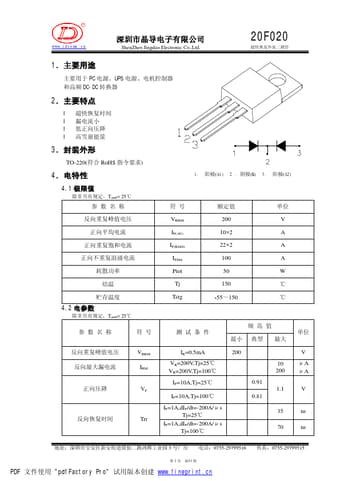

Preview of 20F020 PDF
20F020 Datasheet Preview Page 2 20F020 Datasheet Preview Page 3

Datasheet Details

Part number:

20F020

Manufacturer:

Jingdao

File Size:

189.88 KB

Description:

Ultra-fast diode.
