20PMT04B (20PMT04B / 20PMT05B) Single 10Base-T/100Base-TX Transformer Design

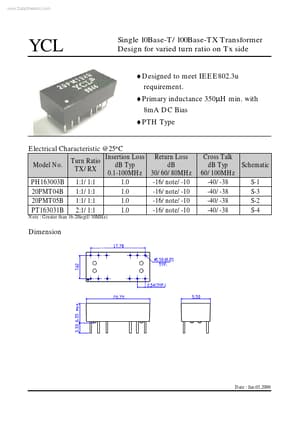

www.DataSheet4U.com YCL Single 10Base-T/100Base-TX Transformer Design for varied turn ratio on Tx side Designed to meet IEEE802.3u requirement. Primary inductance 350µH min. with 8mA DC Bias PTH Type Electrical Characteristic @25° C Insertion Loss Return Loss Turn Ratio Model No. dB Typ dB TX/RX 0.1-100MHz 30/60/80MHz PH163003B 1:1/1:1 1.0 -16/note/-10 20PMT04B 1:1/1:1 1.0 -16/note/-10 20PMT05B 1:1/1:1 1.0 -16/note/-10 PT163031B 2:1/1:1 1.0 -16/note/-10 Note : Great.
