20PMT05B (20PMT04B / 20PMT05B) Single 10Base-T/100Base-TX Transformer Design

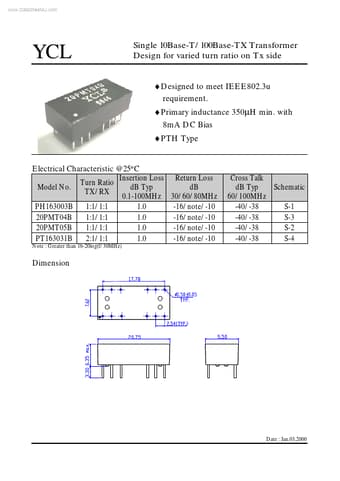

www.DataSheet4U.com YCL Single 10Base-T/100Base-TX Transformer Design for varied turn ratio on Tx side Designed to meet IEEE802.3u requirement. Primary inductance 350µH min. with 8mA DC Bias PTH Type Electrical Characteristic @25° C Insertion Loss Return Loss Turn Ratio Model No. dB Typ dB TX/RX 0.1-100MHz 30/60/80MHz PH163003B 1:1/1:1 1.0 -16/note/-10 20PMT04B 1:1/1:1 1.0 -16/note/-10 20PMT05B 1:1/1:1 1.0 -16/note/-10 PT163031B 2:1/1:1 1.0 -16/note/-10 Note : Great.

20PMT04B_YCL.pdf

20PMT05B Datasheet Preview — This datasheet PDF includes multiple part numbers: 20PMT05B, 20PMT04B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

20PMT05B, 20PMT04B

Manufacturer:

YCL

File Size:

72.74 KB

Description:

(20pmt04b / 20pmt05b) single 10base-t/100base-tx transformer design.

Note:

This datasheet PDF includes multiple part numbers: 20PMT05B, 20PMT04B.
Please refer to the document for exact specifications by model.
