HFR15L06F

Glass Passivated Hyperfast Recovery Rectifier

HFR15L06F Features

* Fast switching for high efficiency www.DataSheet4U.net

* Low noise

* Low reverse leakage current

* High voltage super FRD

* PFC application Mechanical Data

* Case: Molded plastic ITO-220AC

* Epoxy: UL 94V-0 rate flame retardant ,

* Te

HFR15L06F Datasheet (1.15 MB)

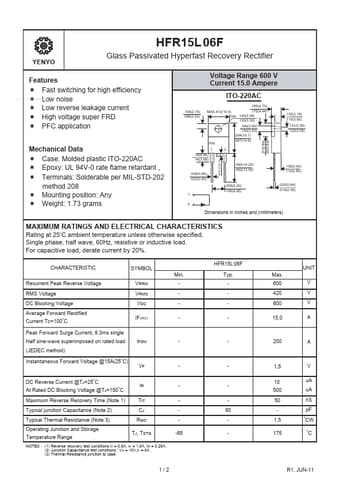

Preview of HFR15L06F PDF

Datasheet Details

Part number:

HFR15L06F

Manufacturer:

YENYO TECHNOLOGY

File Size:

1.15 MB

Description:

Glass passivated hyperfast recovery rectifier.
YENYO Glass Passivated Hyperfast Recovery Rectifier Voltage Range 600 V Current 15.0 Ampere ITO-220AC .108(2.75) .098(2.50) .185(4.70) .175(4.44) MAX.
