SF16A04F, SF16A01F, Glass Passivated Super Fast Recovery Rectifier

YENYO SF16A01F THRU SF16A06F Glass Passivated Super Fast Recovery Rectifier .

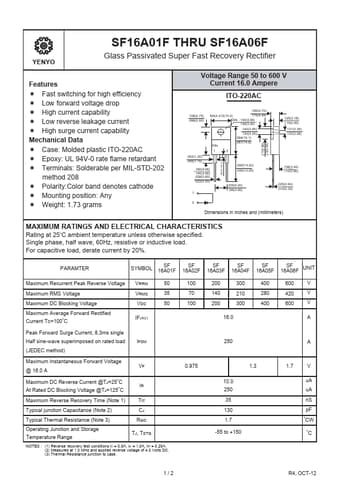

datasheet Preview Page 1 from Datasheet4u.com

SF16A01F-YENYO.pdf

SF16A04F Datasheet Preview — This datasheet PDF includes multiple part numbers: SF16A04F, SF16A01F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF16A04F, SF16A01F

Manufacturer:

YENYO

File Size:

735.27 KB

Description:

Glass Passivated Super Fast Recovery Rectifier

Note:

This datasheet PDF includes multiple part numbers: SF16A04F, SF16A01F.
Please refer to the document for exact specifications by model.

Features

* Fast switching for high efficiency
* Low forward voltage drop
* High current capability
* Low reverse leakage current
* High surge current capability Mechanical Data
* Case: Molded plastic ITO-220AC
* Epoxy: UL 94V-0 rate flame retardant
