SF206G - Glass Passivated Super Fast Recovery Rectifier

This page provides the datasheet information for the SF206G, a member of the SF201G Glass Passivated Super Fast Recovery Rectifier family.

Features

  • Fast switching for high efficiency.
  • Low forward voltage drop.
  • High current capability.
  • Low reverse leakage current.
  • High surge current capability Mechanical Data.
  • Case: Molded plastic DO-15.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Terminals: Solderable per MIL-STD-202 method 208.
  • Polarity:Color band denotes cathode.
  • Mounting position: Any.
  • Weight: 0.4 gram Voltage Range 50 to 800 V Current 2.0 Ampe.

📥 Download Datasheet

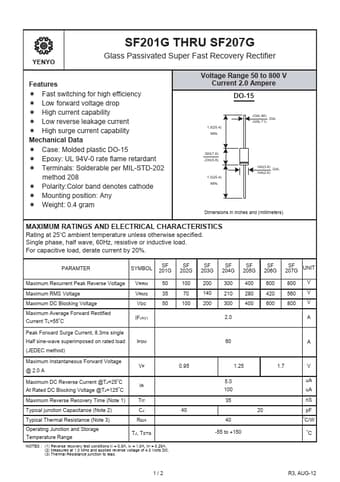

Datasheet preview – SF206G

Datasheet Details

Part number SF206G
Manufacturer YENYO
File Size 700.09 KB
Description Glass Passivated Super Fast Recovery Rectifier
Datasheet download datasheet SF206G Datasheet
Additional preview pages of the SF206G datasheet.

📁 Similar Datasheet

  • SF206 - 2.0A SOFT FAST RECOVERY RECTIFIER (Won-Top Electronics)
  • SF206 - SUPER FAST RECOVERY RECTIFIER (GOOD-ARK Electronics)
  • SF206 - SUPER FAST RECTIFIER (Shanghai Lunsure Electronic Tech)
  • SF2060B - SAW Filter (RF Monolithics)
  • SF2060B-1 - SAW Filter (RF Monolithics)
  • SF2060BC - Super Fast Rectifier (GME)
  • SF2060C - (SF2010C - SF2060C) Super Fast Rectifiers (Luguang Electronic Technology)
  • SF2060FC - (SF2010FC - SF2060FC) Super Fast Rectifiers (Luguang Electronic Technology)
  • SF2062A - SAW Filter (RF Monolithics)
  • SF2063A - SAW Filter (RF Monolithics)
Other Datasheets by YENYO
  • SF201G - Glass Passivated Super Fast Recovery Rectifier
  • SF202G - Glass Passivated Super Fast Recovery Rectifier
  • SF203G - Glass Passivated Super Fast Recovery Rectifier
  • SF204G - Glass Passivated Super Fast Recovery Rectifier
  • SF205G - Glass Passivated Super Fast Recovery Rectifier
  • SF207G - Glass Passivated Super Fast Recovery Rectifier
  • SF20C01C - Glass Passivated Super Fast Recovery Rectifier
  • SF20C02C - Glass Passivated Super Fast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text
YENYO SF201G THRU SF207G Glass Passivated Super Fast Recovery Rectifier Features  Fast switching for high efficiency  Low forward voltage drop  High current capability  Low reverse leakage current  High surge current capability Mechanical Data  Case: Molded plastic DO-15  Epoxy: UL 94V-0 rate flame retardant  Terminals: Solderable per MIL-STD-202 method 208  Polarity:Color band denotes cathode  Mounting position: Any  Weight: 0.4 gram Voltage Range 50 to 800 V Current 2.0 Ampere DO-15 1.0(25.4) MIN. .034(.86) DIA. .028(.71) .300(7.6) .230(5.8) 1.0(25.4) MIN. .140(3.6) DIA. .104(2.6) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25oC ambient temperature unless otherwise specified.
