SF602G - Glass Passivated Super Fast Recovery Rectifier

This page provides the datasheet information for the SF602G, a member of the SF601G Glass Passivated Super Fast Recovery Rectifier family.

Datasheet Summary

Features

  • Fast switching for high efficiency.
  • Low forward voltage drop.
  • High current capability.
  • Low reverse leakage current.
  • High surge current capability Mechanical Data.
  • Case: Molded plastic R-6.
  • Epoxy: UL 94V-0 rate flame retardant.
  • Terminals: Solderable per MIL-STD-202 method 208.
  • Polarity:Color band denotes cathode.
  • Mounting position: Any.
  • Weight: 2.1 grams Voltage Range 50 to 400 V Current 6.0 Amper.

📥 Download Datasheet

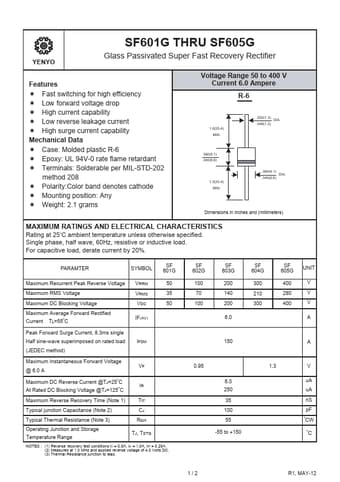

Datasheet preview – SF602G
