MM3Z10W, MM3Z2V0W Datasheet - YFW

MM3Z10W, MM3Z2V0W, Silicon Planar Zener Diodes

Silicon Planar Zener Diodes MM3Z2V0W THRU MM3Z75W SOD-323 Pinning 1.Cathode 2.Anode .

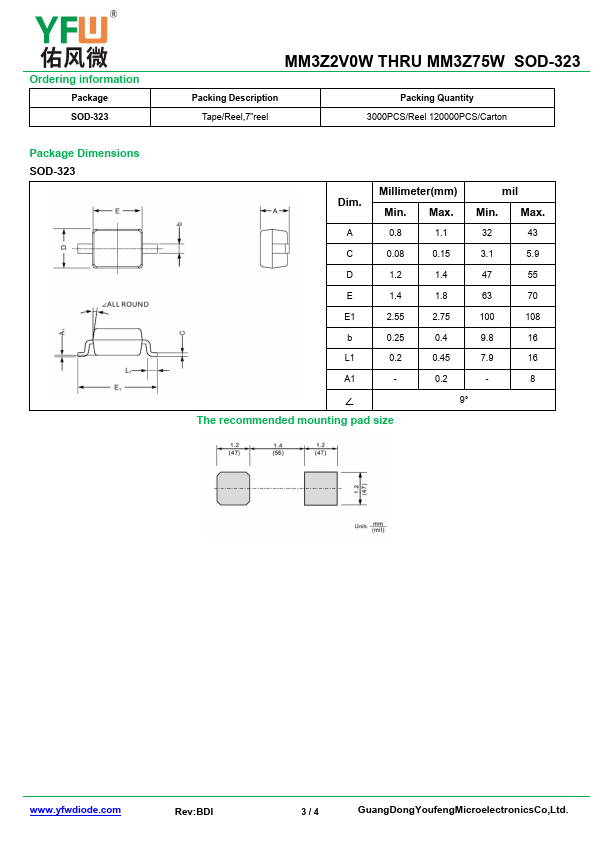

Tape/Reel,7”reel Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.

datasheet Preview Page 1 from Datasheet4u.com

MM3Z2V0W-YFW.pdf

MM3Z10W Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z10W, MM3Z2V0W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MM3Z10W, MM3Z2V0W

Manufacturer:

YFW

File Size:

1.39 MB

Description:

Silicon Planar Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: MM3Z10W, MM3Z2V0W.
Please refer to the document for exact specifications by model.

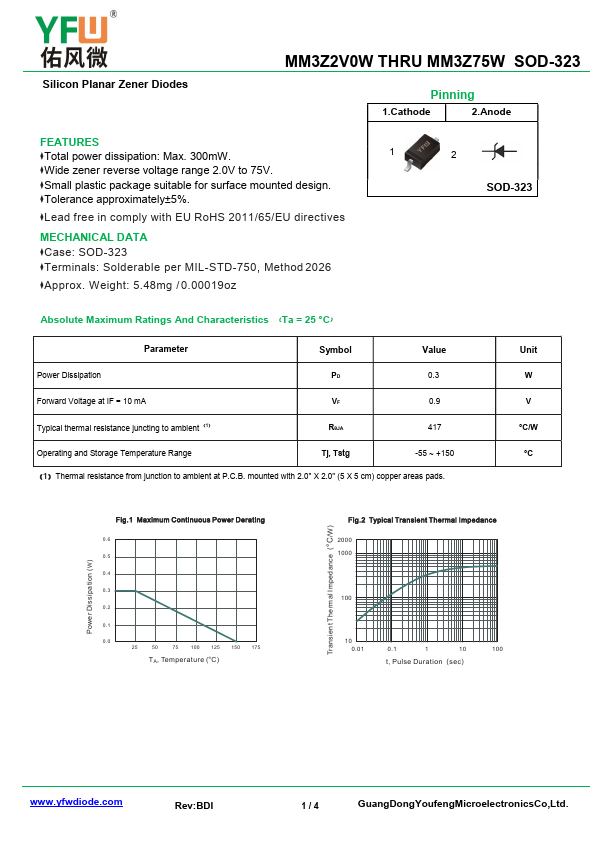

Features

* Total power dissipation: Max. 300mW. 1
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%.
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SOD-323
* T
