LR20D-C, LR20S-A Datasheet - YMTech

LR20D-C MINIATURE POWER LATCH RELAY

LR20S - A LR20S - C MINIATURE POWER LATCH RELAY LR20 Series ▶ LR20S-A (1 Coil latching) 1 Form a Spec. LR20S-A 3VDC LR20S-A 5VDC LR20S-A 6VDC LR20S-A 9VDC LR20S-A 12VDC LR20S-A 24VDC Nominal voltage VDC 3 5 6 9 12 24 Set voltage VDC(Min) 2.1 3.5 4.2 6.3 8.4 16.8 Reset voltage VDC(Min) 2.1 3.5 4.2 6.3 8.4 16.8 Nominal operating current (㎃) Set Reset 88 88 51 51 43 43 28 28 18 18 10 10 Coil resistance ±10%Ω Set Reset 34 34 98 98 140 140 320 320 560 560 590 590 Nominal operating power (㎽) .

LR20S-A-YMTech.pdf

This datasheet PDF includes multiple part numbers: LR20D-C, LR20S-A. Please refer to the document for exact specifications by model.

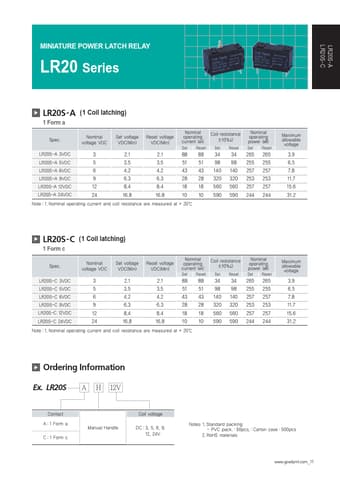

LR20D-C Datasheet Preview Page 2 LR20D-C Datasheet Preview Page 3

Datasheet Details

Part number:

LR20D-C, LR20S-A

Manufacturer:

YMTech

File Size:

691.03 KB

Description:

Miniature power latch relay.

Note:

This datasheet PDF includes multiple part numbers: LR20D-C, LR20S-A.
Please refer to the document for exact specifications by model.
