LR20XWA Datasheet - Panasonic

LR20XWA Alkaline-Zinc/Manganese Dioxide

Industrial Part Number: LR20XWA (Replaces Panasonic part number AM-1PI) Alkaline-Zinc/Manganese Dioxide D (LR20XWA) Industry Standard Dimensions mm (inches) Dimensions Comply with ANSI and IEC Standards Max. inch Min. inch A 2.421 B 2.343 C .709 E .039 F .374 G .059 φ 1.346 1.272 φP 0.25 Specifications Chemical System: Alkaline-Zinc/Manganese Dioxide (Zn/MnO2) Designation: ANSI-13A, IEC-LR20 Nom.

LR20XWA-Panasonic.pdf

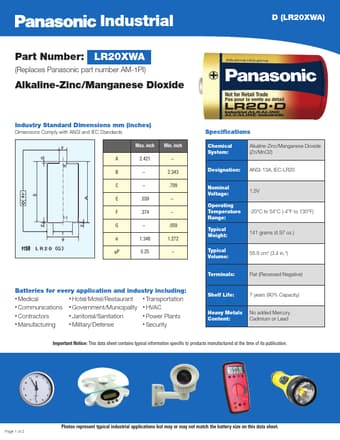

Preview of LR20XWA PDF
LR20XWA Datasheet Preview Page 2

Datasheet Details

Part number:

LR20XWA

Manufacturer:

Panasonic

File Size:

201.00 KB

Description:

Alkaline-zinc/manganese dioxide.
