YB1682 2A 380KHz 20V PWM Buck DC/DC Converter

📥 Download Datasheet  Datasheet Preview Page 1

Description

YB1682 2A 380KHz 20V PWM Buck DC/DC Converter .
The YB1682 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET.

📥 Download Datasheet

Preview of YB1682 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
YB1682
Manufacturer
YOBON TECHNOLOGIES
File Size
208.23 KB
Datasheet
YB1682-YOBONTECHNOLOGIES.pdf
Description
2A 380KHz 20V PWM Buck DC/DC Converter

Features

* 2A Constant Output Current
* 140mΩ RDSON Internal Power PMOSFET
* Switch Up to 92% Efficiency Fixed 380KHz Frequency Wide 3.6V to 20V Input Voltage Range Output Adjustable from 1.222V to 18V Output Curre

Applications

* White LED Backlighting
* Handheld PCs and PDAs
* Mobile Phone

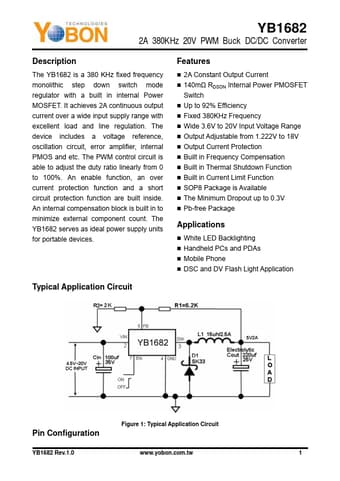

* DSC and DV Flash Light Application Typical Application Circuit Figure 1: Typical Application Circuit Pin Configuration YB1682 Rev.1.0 www. yobon. com. tw 1 YB1682 2A 380KHz 20V PWM Buck DC/DC Converter
