YB1685

2A 380KHz 32V PWM Buck DC/DC Converter

YB1685 Datasheet (222.94 KB)

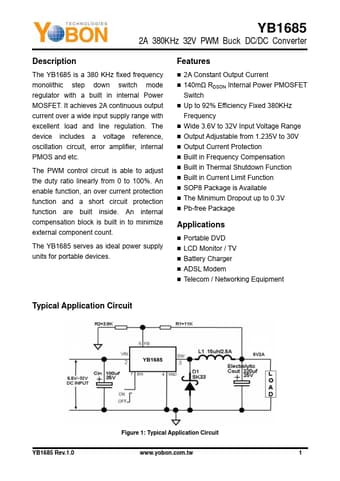

Preview of YB1685 PDF

Datasheet Details

Part number:

YB1685

Manufacturer:

YOBON TECHNOLOGIES

File Size:

222.94 KB

Description:

2a 380khz 32v pwm buck dc/dc converter.

YB1685 Features

* 2A Constant Output Current

* 140mΩ RDSON Internal Power PMOSFET

* Switch Up to 92% Efficiency Fixed 380KHz Frequency Wide 3.6V to 32V Input Voltage Range Output Adjustable from 1.235V to 30V Output Current Protect

YB1685 General Description

The YB1685 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circuit, err.
