YB1692 Datasheet - YOBON TECHNOLOGIES

YB1692 2A Synchronous Step-Down Converter

The YB1692 is a monolithic synchronous buck regulator. The device integrates 130mΩ MOSFETS that provide 2A continuous load cur- rent over a wide operating input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start p.

YB1692 Features

* 2A Output Current Wide 4.75V to 18V Operating Input Range Integrated 130mΩ Power MOSFET Switches Output Adjustable from 0.923V to 15V Up to 93% Efficiency Programmable Soft-Start Stable with

YB1692-YOBONTECHNOLOGIES.pdf

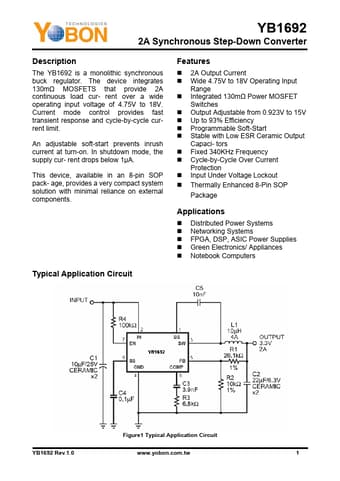

Preview of YB1692 PDF
YB1692 Datasheet Preview Page 2 YB1692 Datasheet Preview Page 3

Datasheet Details

Part number:

YB1692

Manufacturer:

YOBON TECHNOLOGIES

File Size:

546.42 KB

Description:

2a synchronous step-down converter.
