YB1693

3A Synchronous Step-Down Converter

YB1693 Datasheet (408.57 KB)

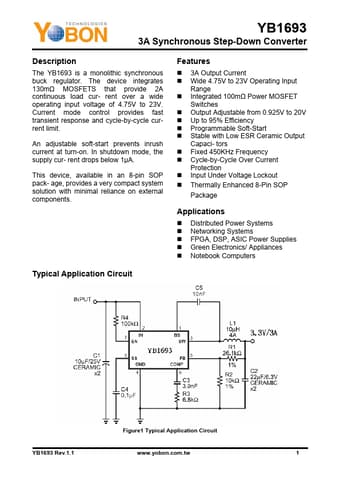

Preview of YB1693 PDF Datasheet

Datasheet Details

Part number:

YB1693

Manufacturer:

YOBON TECHNOLOGIES

File Size:

408.57 KB

Description:

3a synchronous step-down converter

YB1693 Features

* 3A Output Current Wide 4.75V to 23V Operating Input Range Integrated 100mΩ Power MOSFET Switches Output Adjustable from 0.925V to 20V Up to 95% Efficiency Programmable Soft-Start Stable with Low ESR Ceramic Output Capaci- tors Fixed 4

YB1693 General Description

The YB1693 is a monolithic synchronous buck regulator. The device integrates 130mΩ MOSFETS that provide 2A continuous load cur- rent over a wide operating input voltage of 4.75V to 23V. Current mode control provides fast transient response and cycle-by-cycle current limit. An adjustable soft-start p.
