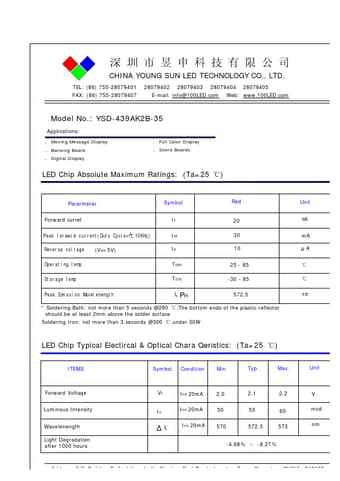

    CHINA YOUNG SUN LED TECHNOLOGY CO., LTD. TEL: (86) 755-28079401 28079402 28079403 28079404 28079405 FAX: (86) 755-28079407 E-mail: info@100LED.com Web: www.100LED.com Model No.: YSD-439AK2B-35 Applications: .Moving Message Display .Banking Board .Digital Display .Full Color Display .Score Boards LED Chip Absolute Maximum Ratings: (Ta=25 ℃) Pararmeter Symbol Red Forward curret IF 20 Peak forward current(Duty Cycle=110,10KHz) IPF 30 Reverse voltage (VR=5V) IR 10 Operating temp TOPR -25 - 85 Storage temp TSTG -30 - 85 Peak Emission Wavelenength λPH 572.5 * Soldering Bath: not more than 5 seconds @260 ℃.
