UTC3525 VOLTAGE-MODE PWM CONTROLLER

YOUWANG

Description

UTC3525 LINEAR INTEGRATED CIRCUIT VOLTAGE-MODE PWM CONTROLLER .
The UTC3525 is a monolithic integrated circuit that included all of the control circuit necessary for a pulse width modulating regulator.

📥 Download Datasheet

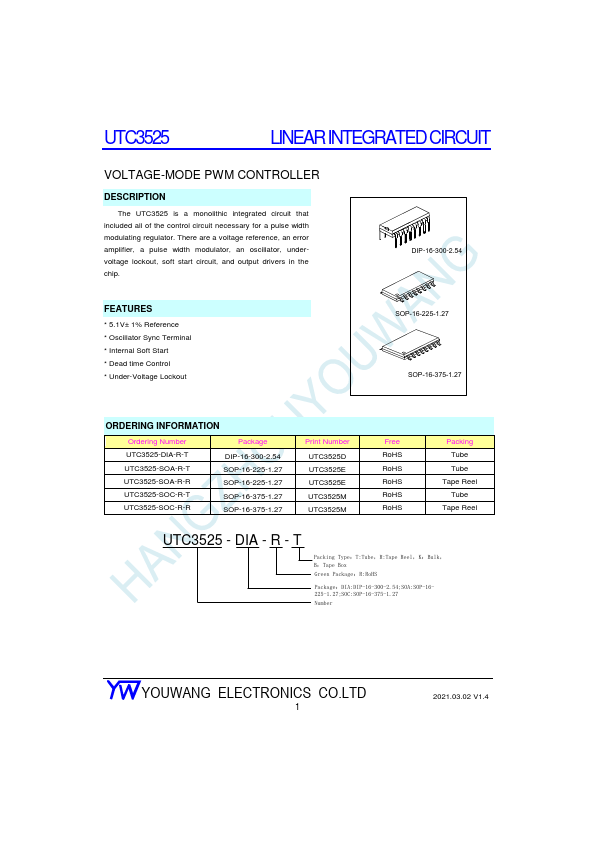

UTC3525 Datasheet Preview — Preview of UTC3525 PDF

Datasheet Specifications

Part number: UTC3525
Manufacturer: YOUWANG
File Size: 751.24 KB
Datasheet: UTC3525-YOUWANG.pdf
Description: VOLTAGE-MODE PWM CONTROLLER

Features

* 5.1V± 1% Reference
* Oscillator Sync Terminal
* Internal Soft Start
* Dead time Control
* Under-Voltage Lockout SOP-16-225-1.27 SOP-16-375-1.27 ORDERING INFORMATION Ordering Number Package UTC3525-DIA-R-T UTC3525-SOA-R-T UTC3525-SOA-R-R UTC3525-SOC-R-T UTC3525-SOC-R-R DIP
