UTC1237 PROTECTOR IC

UTC1237 Description

UTC1237 LINEAR INTEGRATED CIRCUIT PROTECTOR IC FOR STEREO POWER AMPLIFIER .
UTC1237 is a monolithic integrated designed for protecting stero power amplifiers and loudsperkers. Work stably within a wide power su.

UTC1237 Features

* Work stably within a wide power suppy voltage range(vcc=25 to 60V).
* Contain a relay driver(Max I 6=80mA)
* Work as either latching function or automatic resetting function by using pin 3. (in both overload detection and output offset detection, either function can be selected. )

📥 Download Datasheet

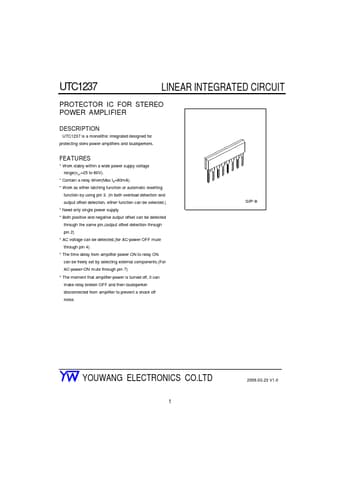

Preview of UTC1237 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC1237
Manufacturer
YOUWANG
File Size
586.93 KB
Datasheet
UTC1237-YOUWANG.pdf
Description
PROTECTOR IC
