UTC1044 Datasheet, amplifier equivalent, Agilent Technologies

UTC1044 Features

• Amplifier
• Frequency Range: 20 to 1000␣MHz
• High Dynamic Range
• Low Noise Figure: 2.5 dB (Typ)
• Medium Power Output: +13.0 dBm (Typ)
• Temperature Comp

PDF File Details

Part number:

UTC1044

Manufacturer:

Agilent Technologies

File Size:

91.61kb

Download:

📄 Datasheet

Description:

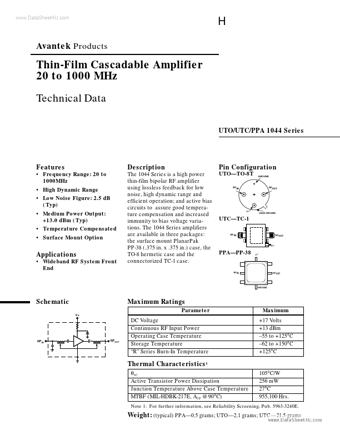

Thin film cascadable amplifier. The 1044 Series is a high power thin-film bipolar RF amplifier using lossless feedback for low noise, high dynamic range and efficien

UTC1044 Application

• Applications
• Wideband RF System Front End PPA
    –PP-38 V+ RF IN RF OUT GROUND Schematic V+ Maximum Ratings Parameter D
