UTC1058

Thin-Film Cascadable Amplifier

UTC1058 Features

* Frequency Range: 5 to 1000 MHz

* High Gain: 24.5 dB (Typ)

* Low Noise Figure: 3.7 dB (Typ)

* 5-Volt Supply

* High Dynamic Range

* Temperature Compensated Applications

* IF/RF Amplification

* 5 Volt Systems Description The 1058 Series

UTC1058 General Description

The 1058 Series is a 5-volt twostage, thin-film RF amplifier using active bias and resistive feedback for temperature compensation and increased immunity to bias voltage variations. Low VSWR is maintained by inductive tuning while the RF is coupled through the amplifier by internal blocking capacito.

UTC1058 Datasheet (135.31 KB)

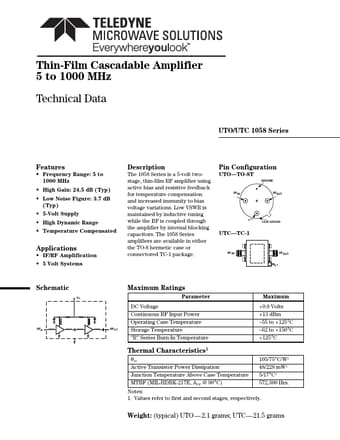

Preview of UTC1058 PDF

Datasheet Details

Part number:

UTC1058

Manufacturer:

TELEDYNE

File Size:

135.31 KB

Description:

Thin-film cascadable amplifier.
