UTC1005 Thin Film Cascadable Amplifier

UTC1005 Description

www.DataSheet4U.com Thin-Film Cascadable Amplifier 5 to 1000 MHz Technical Data UTO/UTC 1005 Series .
The 1005 Series is a medium-gain, thinfilm bipolar RF amplifier using resistive feedback and active bias for stability over temperature and bias varia.

UTC1005 Features

* Frequency Range: 5 to 1000 MHz
* High Dynamic Range
* High Output Power: +21.0 dBm (Typ)
* Noise Figure: 5.0 dB (Typ)
* Temperature Compensated

UTC1005 Applications

* IF/RF Amplification
* Output Stage
* Surface Mount Assembly V+ Schematic V+ Maximum Ratings Parameter DC Voltage Continuous RF Input Power Operating Case Temperature Storage Temperature “R” Series Burn-In Temperature Maximum +17 Volts +15 dBm
* 55 to +115°C

📥 Download Datasheet

Preview of UTC1005 PDF

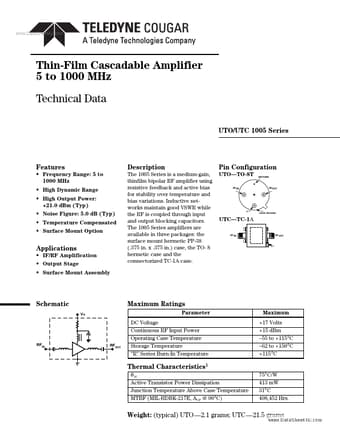

datasheet Preview Page 2 datasheet Preview Page 3
