UTC1031

TV Vertical Deflection System

UTC1031 Features

* Less number of external components

* Wide operating voltage

* Freely adjustable pull-in range

* Large output current-capacity

* Built-in adjusting circuit for fly back time. TYPICAL APPLICATION CIRCUIT Vcc 9-18V C12 100µF/25V VR1 50kB VCC 2 47µF/10V R3 20kΩ 9 Deflection Coil 6

UTC1031 General Description

LI NEAR I NTEGRATED CI RCUI T The UTC1031 is a monolithic integrated circuit designed for use in the vertical deflection circuit of monochrome and small color television receivers. It oscillates vertical synchronizing with the vertical synchronization signal and outputs the vertical deflection cur.

UTC1031 Datasheet (118.35 KB)

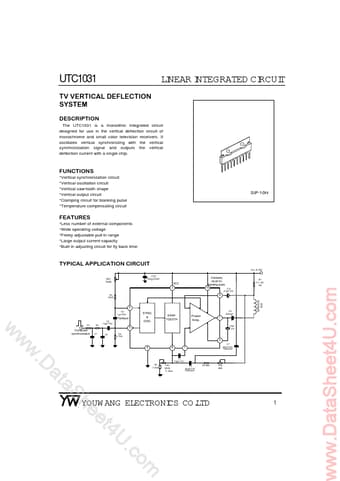

Preview of UTC1031 PDF

Datasheet Details

Part number:

UTC1031

Manufacturer:

Hangzhou Silan Microelectronics

File Size:

118.35 KB

Description:

Tv vertical deflection system.
