UTC1600

SINGLE-BAND AM RADIO

UTC1600 Features

* Minimum number of external parts required.

* Low current dissipation(3.7mA,Tpyical)

* Low supply voltage(1.8V, minimum)

* Adoption of double-balanced mixer.

* Usable in the band range up to SW band SIP-9 BLOCK DIAGRAM Vcc 100µF 100kΩ IFT 7 IF 4 0.047µF 8 3 Output 0.015µF 22µF

UTC1600 General Description

LI NEAR I NTEGRATED CI RCUI T The UTC1600, Being an Am tuner IC placed in SIP-9, provides the functions of Am tuner. It is usable in the band range up to SW band and is especially suited for use in lowcost AM radios and radio-controlled receivers.it includes RF amplifier,Mixer,IF amplifier,Detyect.

UTC1600 Datasheet (146.54 KB)

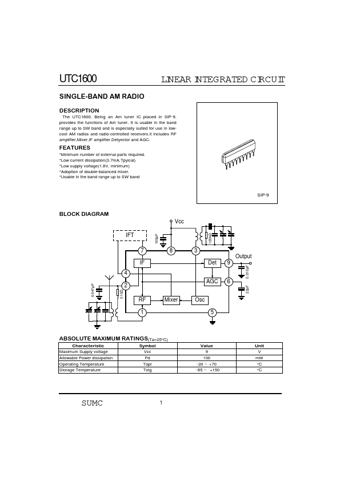

UTC1600 Datasheet Preview — Preview of UTC1600 PDF

Datasheet Details

Part number:

UTC1600

Manufacturer:

SUMC

File Size:

146.54 KB

Description:

Single-band am radio.
