UTC1353

TV Sound System

UTC1353 Features

* Wide operating voltage (9V to 18V) 2.4W, at Vcc=18V, RL=8Ω(For 17” TV) 1.2W, at Vcc=12V, RL=8Ω(For 12” TV)

* linear volume control

* Low Harmonic distortion

* Differential peak detector

* Enough attenuation (typical, 80dB) by squelch circuit DIP-14H TYPICAL APPLICATION CIRCUIT RB

UTC1353 General Description

LI NEAR I NTEGRATED CI RCUI T The UTC1353 is a monolithic integrated circuit designed for the SIF and audio section in television receivers. This IC has all functions including sound IF amplifier, FM detector, DC volume control circuit, audio output amplifier with 2.4Watts output power and voltage.

UTC1353 Datasheet (149.47 KB)

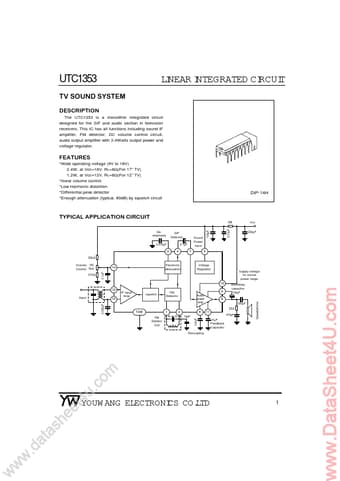

Preview of UTC1353 PDF

Datasheet Details

Part number:

UTC1353

Manufacturer:

Hangzhou Silan Microelectronics

File Size:

149.47 KB

Description:

Tv sound system.
