Part number: UTC-1005
Manufacturer: Teledyne
File Size: 211.73KB
Download: 📄 Datasheet

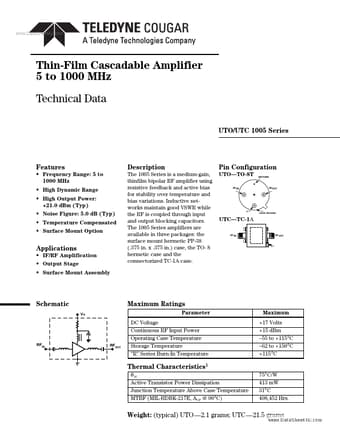

Description: Thin Film Cascadable Amplifier
* Frequency Range: 5 to 1000 MHz
* High Dynamic Range
* High Output Power: +21.0 dBm (Typ)
* Noise Figure: 5.0 dB (Typ)
* Temperature Compensated
.
* IF/RF Amplification
* Output Stage
* Surface Mount Assembly
V+
Schematic
V+
Maximum Ratings
Parameter D.
The 1005 Series is a medium-gain, thinfilm bipolar RF amplifier using resistive feedback and active bias for stability over temperature and bias variations. Inductive networks maintain good VSWR while the RF is coupled through input and output blocki.
