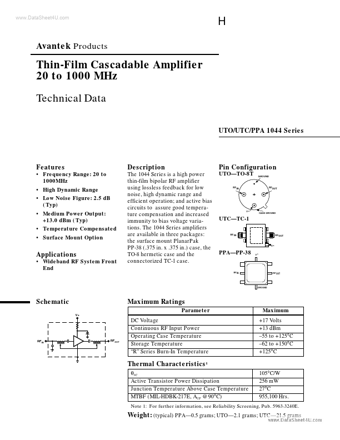

Part number: UTC-1044
Manufacturer: Agilent Technologies
File Size: 91.61KB
Download: 📄 Datasheet
Description: Thin Film Cascadable AMplifier
* Frequency Range: 20 to 1000␣MHz
* High Dynamic Range
* Low Noise Figure: 2.5 dB (Typ)
* Medium Power Output: +13.0 dBm (Typ)
* Temperature Compensat.
* Wideband RF System Front End
PPA—PP-38
V+
RF IN
RF OUT
GROUND
Schematic
V+
Maximum Ratings
Parameter DC Vol.
The 1044 Series is a high power thin-film bipolar RF amplifier using lossless feedback for low noise, high dynamic range and efficient operation; and active bias circuits to assure good temperature compensation and increased immunity to bias voltage .
