UTC-546, Thin-Film Cascadable Amplifier

Thin-Film Cascadable Amplifier 20 to 500 MHz Technical Data UTO/UTC 546 Series .
The 546 Series is a thin-film RF bipolar amplifier using lossless feedback for optimum noise figure and high dynamic range.

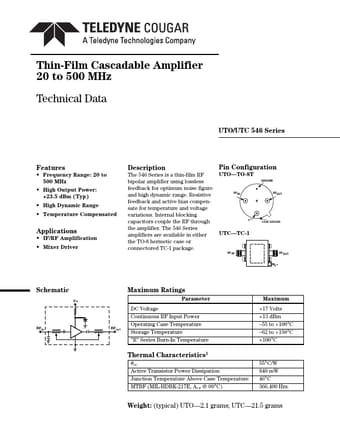

datasheet Preview Page 1 from Datasheet4u.com

UTC-546_teledynecougar.pdf

UTC-546 Datasheet Preview — Preview of UTC-546 PDF

Datasheet Details

Part number:

UTC-546

Manufacturer:

teledyne cougar

File Size:

177.12 KB

Description:

Thin-Film Cascadable Amplifier

Features

* Frequency Range: 20 to 500 MHz
* High Output Power: +23.5 dBm (Typ)
* High Dynamic Range

Applications

* IF/RF Amplification
* Mixer Driver UTC
* TC-1 RF IN RF OUT V+ Schematic V+ Maximum Ratings Parameter DC Voltage Continuous RF Input Power Operating Case Temperature Storage Temperature “R” Series Burn-In Temperature Maximum +17 Volts +13 dBm
* 55 to +100°C
