UTC546, UTC-546 Thin-Film Cascadable Amplifier

teledyne cougar

UTC546 Description

Thin-Film Cascadable Amplifier 20 to 500 MHz Technical Data UTO/UTC 546 Series .
The 546 Series is a thin-film RF bipolar amplifier using lossless feedback for optimum noise figure and high dynamic range.

UTC546 Features

* Frequency Range: 20 to 500 MHz
* High Output Power: +23.5 dBm (Typ)
* High Dynamic Range

UTC546 Applications

* IF/RF Amplification
* Mixer Driver UTC
* TC-1 RF IN RF OUT V+ Schematic V+ Maximum Ratings Parameter DC Voltage Continuous RF Input Power Operating Case Temperature Storage Temperature “R” Series Burn-In Temperature Maximum +17 Volts +13 dBm
* 55 to +100°C

📥 Download Datasheet

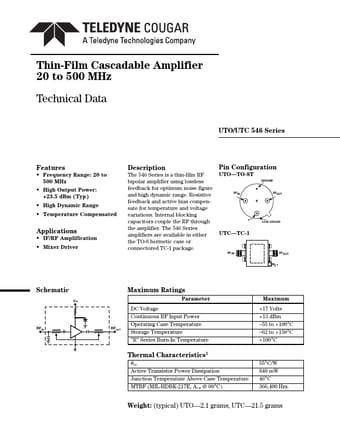

UTC546 Datasheet Preview — This datasheet PDF includes multiple part numbers: UTC546, UTC-546. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: UTC546, UTC-546
Manufacturer: teledyne cougar
File Size: 177.12 KB
Datasheet: UTC-546_teledynecougar.pdf
Description: Thin-Film Cascadable Amplifier
Note: This datasheet PDF includes multiple part numbers: UTC546, UTC-546.
Please refer to the document for exact specifications by model.
