UTC51494 Datasheet, Circuit, Unisonic Technologies

UTC51494 Features

  • Circuit
  • Fully integrated with compact 16-pin dip
  • All necessary functions included for most popular half bridge circuit.
  • Built-in power good delay and power fail lead

PDF File Details

Part number:

UTC51494

Manufacturer:

Unisonic Technologies

File Size:

111.78kb

Download:

📄 Datasheet

Description:

Linear integrated circuit. LINEAR INTEGRATED CIRCUIT The UTC 51494 is a monolithic bipolar integrate circuit that provides both 494 function and built in powe

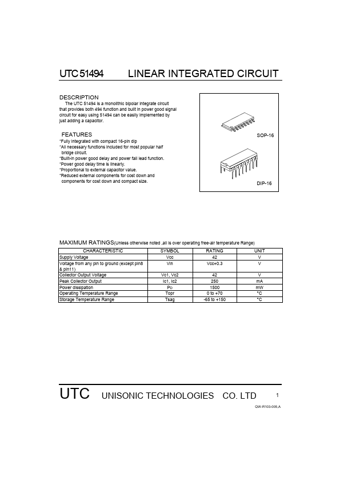

Datasheet Preview: UTC51494 📥 Download PDF (111.78kb)
Page 2 of UTC51494 Page 3 of UTC51494
