UTC571N

COMPANDOR

UTC

UTC571N Features

* Complete compressor and expandor in one Chip

* Temperature compensated

* Greater than 110dB dynamic range

* Operates down to 6VDC

* System levels adjustable with external components

* Distortion may be trimmed out

* Dynamic noise reduction systems

* Voltage-control

UTC571N General Description

The UTC571N is a versatile low cost dual gain control circuit in which either channel may be used as a dynamic range compressor or expandor. Each channel has a full-wave rectifier to detect the average value of the signal, a linerarized temperature-compensated variable gain cell and an operational .

UTC571N Datasheet (273.47 KB)

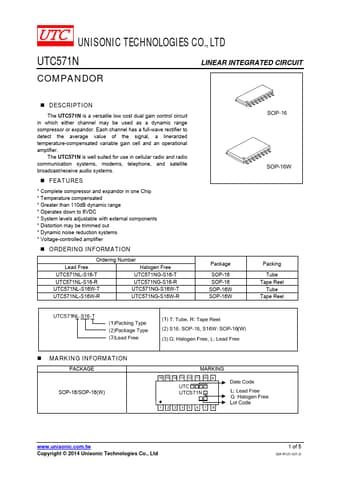

UTC571N Datasheet Preview — Preview of UTC571N PDF

Datasheet Details

Part number:

UTC571N

Manufacturer:

UTC

File Size:

273.47 KB

Description:

Compandor.
