1N4730A, 1N4728A Glass Zener Voltage Regulators

1N4730A Description

DATA SHEET SEMICONDUCTOR 1 Watt DO-41G Hermetically Sealed Glass Zener Voltage Regulators 1N4728A~1N4764A .034(0.86) .028(0.72) 1.00(25.4) MIN.Max.

1N4730A Features

* Zener Voltage Range = 3.3 V to 100 V
* ESD Rating of Class 3 (>16 KV) per Human Body Model
* DO-41G Package
* Double Slug Type Construction
* Metallurgical Bonded Construction
* Oxide Passivated Die Mechanical Characteristics Case : Double slug type,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4730A, 1N4728A. Please refer to the document for exact specifications by model.

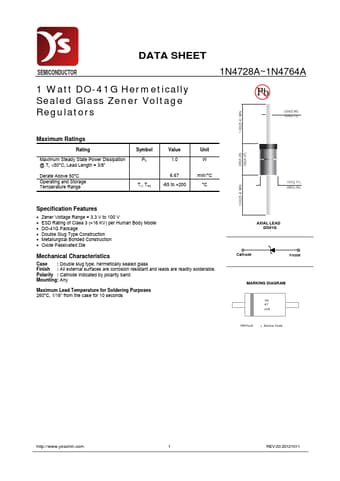

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4730A, 1N4728A
Manufacturer
YS
File Size
655.44 KB
Datasheet
1N4728A-YS.pdf
Description
Glass Zener Voltage Regulators
Note
This datasheet PDF includes multiple part numbers: 1N4730A, 1N4728A.
Please refer to the document for exact specifications by model.
