1N4747A, 1N4728A, Glass Zener Voltage Regulators

DATA SHEET SEMICONDUCTOR 1 Watt DO-41G Hermetically Sealed Glass Zener Voltage Regulators 1N4728A~1N4764A .034(0.86) .028(0.72) 1.00(25.4) MIN.Max.

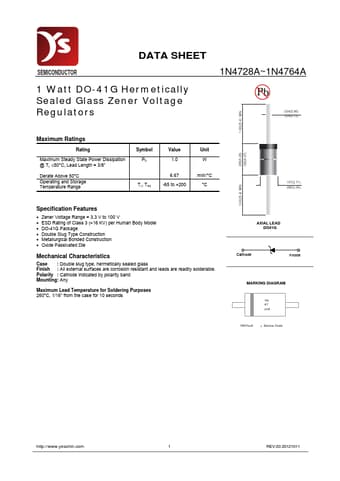

datasheet Preview Page 1 from Datasheet4u.com

1N4728A-YS.pdf

1N4747A Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4747A, 1N4728A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4747A, 1N4728A

Manufacturer:

File Size:

655.44 KB

Description:

Glass Zener Voltage Regulators

Note:

This datasheet PDF includes multiple part numbers: 1N4747A, 1N4728A.
Please refer to the document for exact specifications by model.

Features

* Zener Voltage Range = 3.3 V to 100 V
* ESD Rating of Class 3 (>16 KV) per Human Body Model
* DO-41G Package
* Double Slug Type Construction
* Metallurgical Bonded Construction
* Oxide Passivated Die Mechanical Characteristics Case : Double slug type,
