SB1080, SB1020 10A SCHOTTKY BARRIERRECTIFIER

SB1080 Description

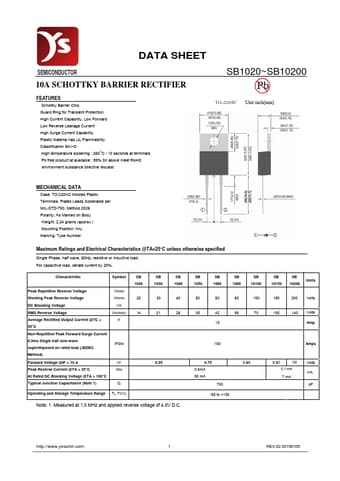

DATA SHEET SEMICONDUCTOR 10A SCHOTTKY BARRIER RECTIFIER SB1020~SB10200 .

SB1080 Features

* Schottky Barrier Chip Guard Ring for Transient Protection High Current Capability, Low Forward Low Reverse Leakage Current High Surge Current Capability Plastic Material has UL Flammability Classification 94V-O High temperature soldering : 260OC / 10 seconds at terminals Pb free product at available

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1080, SB1020. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1080, SB1020
Manufacturer
YS
File Size
742.10 KB
Datasheet
SB1020-YS.pdf
Description
10A SCHOTTKY BARRIERRECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB1080, SB1020.
Please refer to the document for exact specifications by model.
