UF301G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER

Product Overview

YS

📥 Download Datasheet

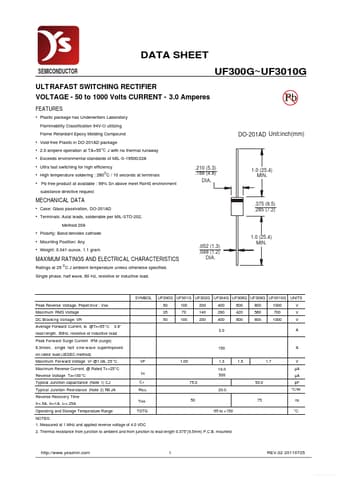

UF301G (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER by YS - Datasheet Preview — Datasheet preview – UF301G

Datasheet Details

Part number	UF301G
Manufacturer	YS
File Size	55.66 KB
Description	(UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
Datasheet	UF301G Datasheet
Note	This datasheet PDF includes multiple part numbers: UF301G, UF3010G. Please refer to the document for exact specifications by model.
Additional preview pages of the UF301G datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
Void-free Plastic in DO-201AD package.
2.0 ampere operation at TA=55°C J with no thermal runaway.
Exceeds environmental standards of MIL-S-19500/228.
Ultra fast switching for high efficiency.
High temperature soldering : 260OC / 10 seconds at terminals.
Pb free product at available : 99% Sn above meet RoHS.
