B0503D-2W DC-DC Converter

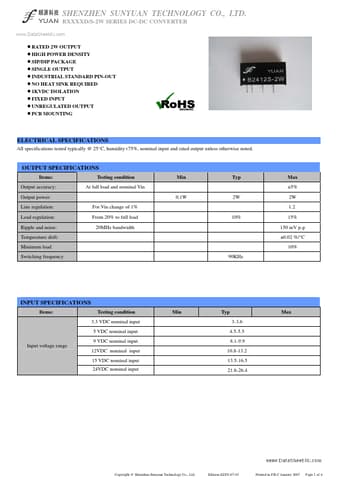

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. BXXXXD/S-2W SERIES DC-DC CONVERTER www.DataSheet4U.com RATED 2W OUTPUT HIGH POWER DENSITY SIP/DIP PACKAGE SINGLE OUTPUT INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1KVDC ISOLATION FIXED INPUT UNREGULATED OUTPUT PCB MOUNTING ELECTRICAL SPECIFICATIONS All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted. OUTPUT SPECIFICATIONS Items: Output accuracy: Output power: Line regulation: Load regulati.

B0503D-2W Features

* of the majority of Sunyuan components DC-DC converters is the high galvanic isolation capability. This allows several variations on circuit topography by using a single DC-DC converter. The basic input to output isolation can be used to provide either a simple isolated output power source, or to gen
