B0503LS-1WR3 Datasheet, Converter, MORNSUN

B0503LS-1WR3 Features

  • Converter
  • Continuous short-circuit protection
  • No-load input current as low as 5mA
  • Operating temperature range: -40℃ ~ +105℃
  • High efficiency up to 85%

PDF File Details

Part number:

B0503LS-1WR3

Manufacturer:

MORNSUN

File Size:

941.18kb

Download:

📄 Datasheet

Description:

Dc/dc converter. of reflected ripple current test method. Unit mA VDC Output Specifications Item Operating Conditions Voltage Accuracy Linear Re

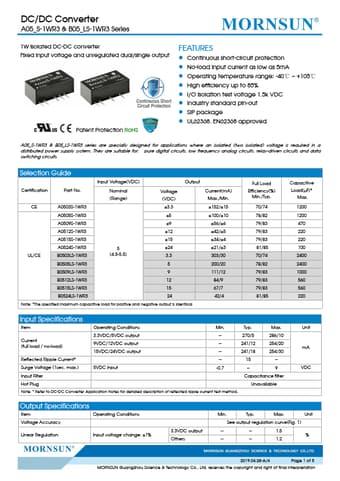

Datasheet Preview: B0503LS-1WR3 📥 Download PDF (941.18kb)
Page 2 of B0503LS-1WR3 Page 3 of B0503LS-1WR3

B0503LS-1WR3 Application

  • Applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits
