DW2-12D15 DC/DC Converter

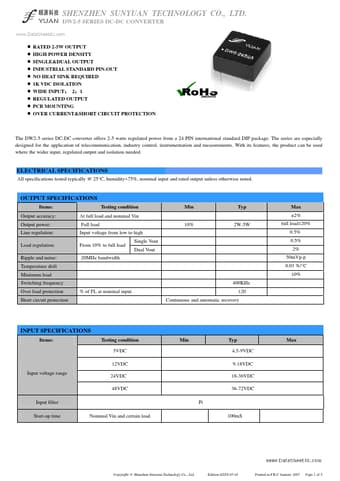

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. DW2-5 SERIES DC-DC CONVERTER www.DataSheet4U.com z RATED 2-5W OUTPUT z HIGH POWER DENSITY z SINGLE&DUAL OUTPUT z INDUSTRIAL STANDARD PIN-OUT z NO HEAT SINK REQUIRED z 1K VDC ISOLATION z WIDE INPUT： 2：1 z REGULATED OUTPUT z PCB MOUNTING z OVER CURRENT&SHORT CIRCUIT PROTECTION The DW2-5 series DC-DC converter offers 2-5 watts regulated power from a 24 PIN international standard DIP package. The series are especially designed for the application of telecommuni.

DW2-12D15 Features

* the product can be used where the wider input, regulated output and isolation needed. ELECTRICAL SPECIFICATIONS All specifications tested typically @ 25°C, humidity
