YDA148 STEREO 5W-15W DIGITAL AUDIO POWER AMPLIFIER

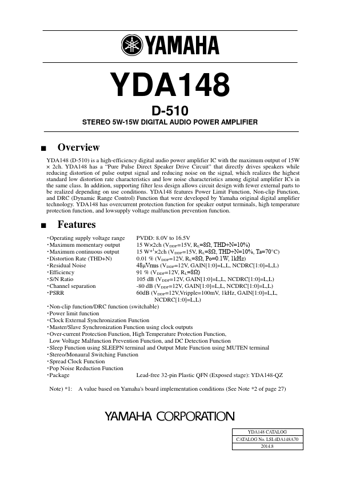

YDA148 D-510 STEREO 5W-15W DIGITAL AUDIO POWER AMPLIFIER Overview YDA148 (D-510) is a high-efficiency digital audio power amplifier IC with the maximum output of 15W × 2ch. YDA148 has a “Pure Pulse Direct Speaker Drive Circuit” that directly drives speakers while reducing distortion of pulse output signal and reducing noise on the signal, which realizes the highest standard low distortion rate characteristics and low noise characteristics among digital amplifier ICs in the same class. In.

YDA148 Features

* Power Limit Function, Non-clip Function, and DRC (Dynamic Range Control) Function that were developed by Yamaha original digital amplifier technology. YDA148 has overcurrent protection function for speaker output terminals, high temperature protection function, and lowsupply voltage malfunction prev
