YDA142

The YDA142 is DIGITAL INPUT STEREO 9.5W DIGITAL AUDIO POWER AMPLIFIER designed by YAMAHA CORPORATION.

Product Overview

YAMAHA CORPORATION

Datasheet Details

Part number	YDA142
Manufacturer	YAMAHA CORPORATION
File Size	1.03 MB
Description	DIGITAL INPUT STEREO 9.5W DIGITAL AUDIO POWER AMPLIFIER
Datasheet	YDA142_YAMAHACORPORATION.pdf

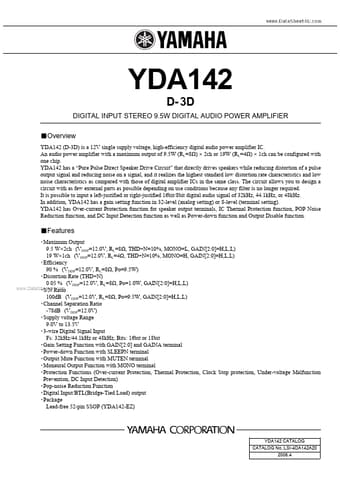

Additional preview pages of the YDA142 datasheet.

Product details

Description

of operating functions Serial Audio Interface Sampling Frequency (Fs) Selection Input an audio signal using SCLK, LRCLK, and SDIN terminals.YDA142 supports three sampling frequencies (Fs): 32kHz, 44.1kHz, and 48kHz.Set the FSSEL terminal as follows in accordance with a Fs of a signal to use.At this time, use a frequency of 64Fs as a SCLK signal.FSSEL terminal setting FSSEL Sampling Frequency (Fs) L 44.1kHz, 48kHz H 32kHz Bit Number Selection YDA142 supports two bit widths: 16-bit and 18

Features

utput 9.5 W×2ch (VDDP=12.0V, RL=8Ω, THD+N=10%, MONO=L, GAIN[2:0]=H,L,L) 19 W×1ch (VDDP=12.0V, RL=4Ω, THD+N=10%, MONO=H, GAIN[2:0]=H,L,L) Efficiency 90 % (VDDP=12.0V, RL=8Ω, Po=9.5W) Distortion Rate (THD+N) 0.05 % (VDDP=12.0V, RL=8Ω, Po=1.0W, GAIN[2:0]=H,L,L) www. DataSheet4U. com S/N Ratio 100dB (VDDP=12.0V, RL=8Ω, Po=9.5W, GAIN[2:0]=H,L,L) Channel Separation Ratio -78dB (VDDP=12.0V) Supply voltage Range 9.0V to 13.5V 3-wire Digital Signal Input Fs: 32kHz/44.1kHz or 48kHz, Bits: 16bit or 18bit Gai.
