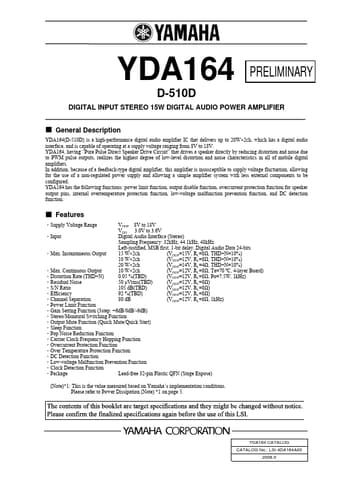

Part number:
YDA164
Manufacturer:
YAMAHA
File Size:
1.25 MB
Description:
Digital input stereo 15w digital audio power amplifier.
* Supply Voltage Range Input VDDP 8V to 18V VDD 3.0V to 3.6V Digital Audio Interface (Stereo) Sampling Frequency: 32kHz, 44.1kHz, 48kHz Left-justified, MSB first, 1-bit delay, Digital Audio Data 24-bits Max. Instantaneous Output Max. Continuous Output Distortion Rate (THD+N) Residual Noise S/N Ra
YDA164
YAMAHA
1.25 MB
Digital input stereo 15w digital audio power amplifier.
