YDA168B - MONO 3.3W Non-Clip DIGITAL AUDIO POWER AMPLIFIER

Product Overview

YAMAHA CORPORATION

Part number	YDA168B
Manufacturer	YAMAHA CORPORATION
File Size	1.87 MB
Description	MONO 3.3W Non-Clip DIGITAL AUDIO POWER AMPLIFIER
Datasheet	YDA168B Datasheet

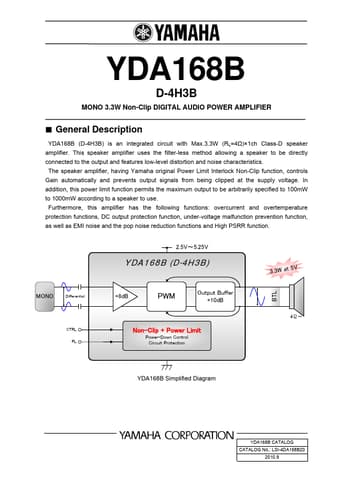

Additional preview pages of the YDA168B datasheet.

YDA168B (D-4H3B) is an integrated circuit with Max.3.3W (RL=4Ω)×1ch Class-D speaker amplifier.

Voltage Input Output VDD 2.5V to 5.25V Mono (Differential)×1 Speaker ( Class-D, BTL) YDA168B Maximum Output 3.3 W×1ch 0.93 W×1ch 1.00 W×1ch 0.75 W×1ch Maximum Output 2.4 W×1ch (Non-Clip) 0.70W×1ch Distortion (THD+N) 0.045 % (VDD = 5.0 V, RL = 4 Ω, THD+N = 10 %, TA = 25 °C) (VDD = 3.6 V, RL = 8 Ω, THD+N = 10 %, TA = 25 °C) (VDD = 4.2 V, RL = 8 Ω, THD+N = 1 %, TA = 25 °C) (VDD = 3.6 V, RL = 8 Ω, THD+N = 1 %, TA = 25 °C) (VDD = 5.0 V, RL = 4 Ω, THD+N = 1 %, TA = 25 °C) (VDD = 3.6 V, RL =.
